Product Description

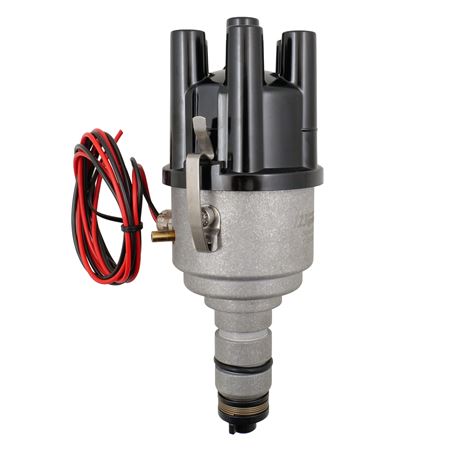

123 Ignition Electronic 6 Cylinder Distributor - Jaguar XK 6 Cylinder Engines - 123JAG6RV
The 123\JAG-6-R-V replaces most 6 cylinder distributors that were used in the 3.4 litre, 3.8 litre and 4.2 litre "XK" engines.
The unit offers 16 different advance-curves, that can be selected via a little switch. This is a great feature that allows you to easily fine tune your engine.
The unit also offers :
- vacuum-advance
- automatic dwell
- spark balancing
- automatic power cut off after 1 second
- gearshift retard
SPECIFICATIONS
Direction: CCW (topview)
Voltage: 4,0-15,0 Volts
Range: 500 - 7000 rpm
Temperature: -30 to 85 Celsius
Coil: stock or High Energy coil - primary coil NOT below 1,0 ohm
Dwell: constant current, fully autom.
Time-out: after 1 second current is switched off
Spark-bal.: better than 0,5 degr.crankshaft
Vacuum: advance starts at 5 inchHg - stops at 10 degr. @ 10 inchHg - gearshift retard > 17 inchHg
Max.advance: 45 degr. crankshaft
Wiring: red = +6V or +12V, black ='-' coil
