Product Description

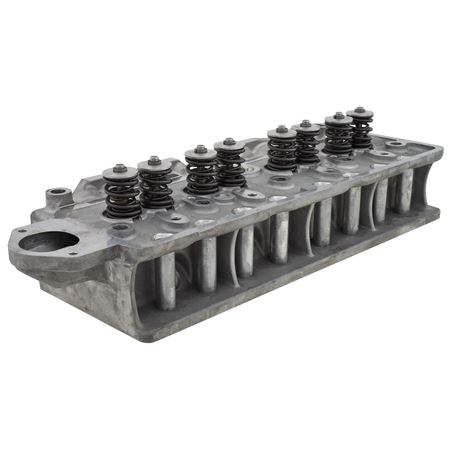

Cylinder Head Fast Road Stage 3 TR4A - TT1113NA
Stage III cylinder head - fast road/competition - New valves, guides, springs, alloy caps, polished and ported to stage III.
Further modifications to the ports and chambers. Large inlet valves are fitted with new guides, uprated valve springs and alloy valve caps.
Our range of gas flowed heads are available to suit all needs. All heads are supplied with stainless valves, bronze-alloy valve guides and valve seats suitable for unleaded petrol unless requested otherwise. These cylinder head specifications are based on a 9.5:1 compression ratio on an 87mm engine.
Please advise us of the engine capacity and any planned changes when ordering.
These have been manufactured as close as possible to the original TR4A specification , with the exception of a few upgrades, notably, the webs between the spark plugs have been improved and the flange thickness has been increased to give added strength especially if it is skimmed for a higher compression ratio. The inlet valve shroud(the overhang directly below the inlet valve) has been removed, which is what you have to do when skimming a TR4A head, this may look a little unusual when fitting a head gasket against it but it works absolutely fine.
