Triumph TR250 Starter Motors - Early Lucas 25022 and 25079 - 6 Cylinder

Order your Triumph TR250 Starter Motors - Early Lucas 25022 and 25079 - 6 Cylinder today from Rimmer Bros. Low prices & fast delivery worldwide! Massive inventory of parts and accessories.
Part No.: GRID200523
Prices displayed in: GB Pound Euro US Dollar AUD NZD CHF NOK SEK DKK CAD
GridItemIDItemItem InformationQty ReqPart No.AvailabilityPriceOrder Qty
5632Item-54Starter Motor - GEU9405 - Inertia Type - ReconditionedStarter Motor - GEU9405 - Inertia Type - ReconditionedQty Req-1GEU9405No longer available
Price Match
Use GEU9405N

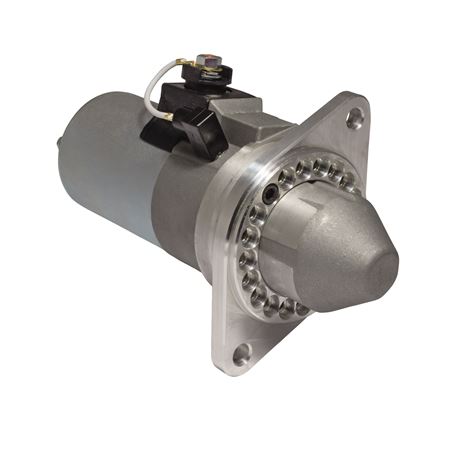

491845Item-54Uprated Hi Torque Starter Motor - GT6 and Vitesse - Outright SaleUprated Hi Torque Starter Motor - GT6 and Vitesse - Outright SaleQty Req-1GEU9405-URGT6-VITIn stock
Price Match
£193.33 ex VAT (Business & Non EU)£232.00 inc UK VAT
Qty:
743274Item-54Uprated Hi Torque Starter Motor - for LHD Models - Outright SaleUprated Hi Torque Starter Motor - for LHD Models - Outright SaleQty Req-1GEU9405-UR-LHDIn stock
Price Match
£244.17 ex VAT (Business & Non EU)£293.00 inc UK VAT
Qty:
532149Item-54Starter Motor - Inertia Type - New - Outright Sale - GEU9405NStarter Motor - Inertia Type - New - Outright Sale - GEU9405NQty Req-1GEU9405NIn stock
Price Match
£65.00 ex VAT (Business & Non EU)£78.00 inc UK VAT
Qty:
545844Item-55Starter Motor - Reconditioned Exchange - 200535RStarter Motor - Reconditioned Exchange - 200535RItem Info 2-Lucas nos. 25022 and 25079Qty Req-1200535RNo longer available
USE GEU9405 OR GEU9405NEW
5632Item-55Starter Motor - GEU9405 - Inertia Type - ReconditionedStarter Motor - GEU9405 - Inertia Type - ReconditionedQty Req-1GEU9405No longer available
Price Match
Use GEU9405N
9716Item-55Uprated Hi Torque Starter Motor - RHD Models - Outright SaleUprated Hi Torque Starter Motor - RHD Models - Outright SaleQty Req-1GEU9405-URIn stock
Price Match
£193.33 ex VAT (Business & Non EU)£232.00 inc UK VAT
Qty:
532149Item-55Starter Motor - Inertia Type - New - Outright Sale - GEU9405NStarter Motor - Inertia Type - New - Outright Sale - GEU9405NQty Req-1GEU9405NIn stock
Price Match
£65.00 ex VAT (Business & Non EU)£78.00 inc UK VAT
Qty:
479148Item-56Nut - 501709Nut - 501709Item Info 2-retaining mechanism on shaft - alternative to clip - as fittedQty Req-1501709No longer available


192288Item-57Circlip - Pinion - 519813Circlip - Pinion - 519813Item Info 2-retaining mechanism on shaft - alternative to nut - as fittedQty Req-1519813No longer available


5785Item-58Main Spring - Bendix - 7H5045Main Spring - Bendix - 7H5045Qty Req-17H5045In stock
£4.33 ex VAT (Business & Non EU)£5.20 inc UK VAT
Qty:
511257Item-59Pinion & Sleeve Assembly - 9 Tooth - Lucas 25022 - 500892Pinion & Sleeve Assembly - 9 Tooth - Lucas 25022 - 500892Qty Req-1500892No longer available
Use 67H5010
564626Item-60Pinion & Barrel - 9 Tooth - Lucas 25079 - 511290Pinion & Barrel - 9 Tooth - Lucas 25079 - 511290Qty Req-1511290No longer available
Use 67H5010
5629Barrel and Pinion - 9 Tooth - Bendix - 67H5010Barrel and Pinion - 9 Tooth - Bendix - 67H5010Qty Req-167H5010In stock
Price Match
£17.50 ex VAT (Business & Non EU)£21.00 inc UK VAT
Qty:
479149Item-61Sleeve - Screwed - 514023Sleeve - Screwed - 514023Qty Req-1514023No longer available


5629Barrel and Pinion - 9 Tooth - Bendix - 67H5010Barrel and Pinion - 9 Tooth - Bendix - 67H5010Item Info 2-alternative - replaces above as matched pair onlyQty Req-167H5010In stock
Price Match
£17.50 ex VAT (Business & Non EU)£21.00 inc UK VAT
Qty:
191279Item-62Spring - 501711Spring - 501711Qty Req-1501711No longer available


479150Item-63Bracket Assembly - 501712Bracket Assembly - 501712Item Info 2-drive endQty Req-1501712No longer available


9783Item-64Bush - Drive End - Starter 25022 - 7H5049Bush - Drive End - Starter 25022 - 7H5049Qty Req-17H5049In stock
£1.95 ex VAT (Business & Non EU)£2.34 inc UK VAT
Qty:
556698Item-65Bushing - 47H5346Bushing - 47H5346Item Info 2-driving end - Lucas no. 25079Qty Req-147H5346In stock
£0.95 ex VAT (Business & Non EU)£1.14 inc UK VAT
Qty:
191280Item-66Armature Assembly - 501714Armature Assembly - 501714Item Info 2-Lucas no. 25022Qty Req-1501714No longer available


191693Item-66Armature Assembly - 514026Armature Assembly - 514026Item Info 2-Lucas no. 25079Qty Req-1514026Shown as In Stock at our supplier. Order NOW!
Price Match

£12.54 ex VAT (Business & Non EU)£15.05 inc UK VAT
Qty:
479151Item-67Field Coil Set - 501715Field Coil Set - 501715Qty Req-1501715No longer available


479152Item-68Band Cover - 57458Band Cover - 57458Qty Req-157458No longer available


191451Item-69End Plate - Commutor End - Pressed - 509817End Plate - Commutor End - Pressed - 509817Qty Req-1509817No longer available


479153Item-70End Plate - Commutor End - Die Cast - 501706End Plate - Commutor End - Die Cast - 501706Qty Req-1501706No longer available


479154Item-71Spring Set for Pressed End Plate - 509819Spring Set for Pressed End Plate - 509819Qty Req-1509819No longer available


191278Item-71Spring Set for Die Cast End Plate - 501708Spring Set for Die Cast End Plate - 501708Qty Req-1501708No longer available


9635Item-72Brush Set - GSB102Brush Set - GSB102Qty Req-1GSB102In stock
Price Match
£5.62 ex VAT (Business & Non EU)£6.74 inc UK VAT
Qty:
9732Item-73Bush - Commutator End - 47H5340Bush - Commutator End - 47H5340Item Info 2-for pressed end plateQty Req-147H5340In stock
£1.50 ex VAT (Business & Non EU)£1.80 inc UK VAT
Qty:
9740Item-74Bush - Commutator End - Starter 25022 - 511141Bush - Commutator End - Starter 25022 - 511141Item Info 2-for die cast end plateQty Req-1511141Shown as In Stock at our supplier. Order NOW!

£1.83 ex VAT (Business & Non EU)£2.20 inc UK VAT
Qty:
479155Item-75Cap - Shaft - 501704Cap - Shaft - 501704Item Info 2-Lucas no. 25022Qty Req-1501704No longer available


479156Item-76Bolt - 502210Bolt - 502210Item Info 2-through end bracketsQty Req-2502210No longer available


198476Item-77Sundry Parts Kit - 70391Sundry Parts Kit - 70391Qty Req-170391No longer available


205Item-78Bolt - 3/8 inch UNF x 2 1/4 inch - BH606181Bolt - 3/8 inch UNF x 2 1/4 inch - BH606181Item Info 2-starter & gearbox to engineQty Req-2BH606181In stock
£1.10 ex VAT (Business & Non EU)£1.32 inc UK VAT
Qty:
574730Item-78Bolt - BH606181JBolt - BH606181JItem Info 2-starter & gearbox to engineQty Req-2BH606181JNo longer available
Price Match
Use BH606181
333Item-79Washer - Single Coil Locking - 3/8 inch - GHF333Washer - Single Coil Locking - 3/8 inch - GHF333Qty Req-2GHF333In stock
£0.11 ex VAT (Business & Non EU)£0.13 inc UK VAT
Qty:
1281Item-80Washer - External Star - 3/8 inch - WE600061Washer - External Star - 3/8 inch - WE600061Qty Req-1WE600061In stock
£0.25 ex VAT (Business & Non EU)£0.30 inc UK VAT
Qty:
625875Item-80Washer-Shake - WE600061JWasher-Shake - WE600061JQty Req-1WE600061JNo longer available
Use WE600061
362Item-81Nut - 3/8 inch UNF x 9/16 inch - GHF202Nut - 3/8 inch UNF x 9/16 inch - GHF202Qty Req-2GHF202In stock
£0.45 ex VAT (Business & Non EU)£0.54 inc UK VAT
Qty:
5780Item-82Shim - Starter Motor - 104549Shim - Starter Motor - 104549Item Info 2-starter bendix positionQty Req-a/r104549In stock
Price Match
£5.21 ex VAT (Business & Non EU)£6.25 inc UK VAT
Qty:
5424Item-83Spacer to Engine Rear Plate - 131570Spacer to Engine Rear Plate - 131570Qty Req-1131570No longer available
Use 131570U
838500Item-83Spacer to Engine Rear Plate - Used - 131570USpacer to Engine Rear Plate - Used - 131570UQty Req-1131570UIn stock
Price Match
£8.54 ex VAT (Business & Non EU)£10.25 inc UK VAT
Qty:
Product Description

Triumph TR250 Starter Motors - Early Lucas 25022 and 25079 - 6 Cylinder
TR250s were fitted with Lucas model M35G-1 starter motors. The factory replaced the early design (which had radial brushes contacting a ‘side’ commutator) by an all-variants-encompassing starter motor of the later design (with axial brushes contacting a face commutator).  The net result was two starter motors of clearly different construction which were, in fact, interchangeable.  They may be identified by the following:
Lucas Type M35G  (original Triumph part no. 200535): Stamped with Lucas no. 25022 or 25079, plus suffix between A and H.
Lucas Type M35J: Stamped with Lucas no. 25149.
If you wish to repair your own starter motor, you must identify which type is fitted prior to ordering spares for it.
