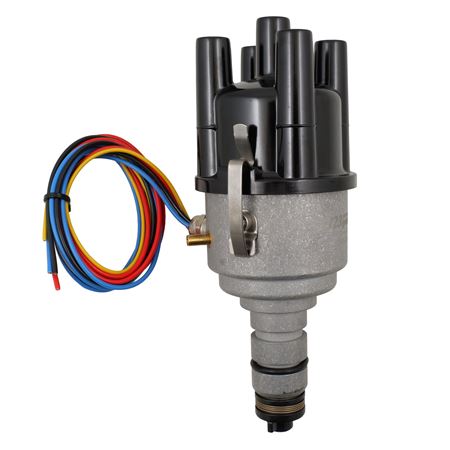

MGB 123 Ignition Electronic Distributor - Programmable

Order your MGB 123 Ignition Electronic Distributor - Programmable ⛽ Low prices and fast, worldwide delivery ✈ British car experts ♚ Call ☎ 01522 568000 or ☎ 1-855-746-2767
Part No.: GRID019889

Prices displayed in:
123ignition did it again! If you want to tune your engine, or you have an engine for which there is no standard distributor available.....the new 123\TUNE is the answer ! By connecting it to a computer, the end-user can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE.
( Handy, if you're driving on two different fuels, like regular fuel with LPG or with Ethanol )

Here are all the features offered:
  • rotation CW and CCW ( autodetect )
  • for 6 Volt and/or 12 Volt cars ( autodetect )
  • variable dwell constant current, fully autom. ( autodetect )
  • coil current protection time-out after 1 second ( autodetect )
  • spark-balancing: better than 0,5 degr. crankshaft
  • for positive and negative earthed cars ( 123\TUNE-8 is for neg.earth ONLY )
  • two centrifugal advance curves ( 500 to 8000 rpm )
  • two vacuum-advance and boost-retard curves ( 0 to 200 kPa or -30 inHg to +15 psi )
  • two MAP-start fields
  • two rev.limiters ( advanced random spark stealing )
  • real-time tuning under keyboard-control ( ideal for working on a rolling road )
  • rpm-stopwatch ( ideal for tuning using the road itself as a rolling road )
  • luxurious import-from-file and export-to-file ( curves can easily be exchanged over the internet )
electronic "dashboard" with:
  • temperature gauge ( selectable in degrees Celsius or Fahrenheit )
  • manifold pressure ( selectable in Bar or inches Hg / Psi )
  • rev. counter ( 0 to 8000 rpm crankshaft )
  • spark-energy gauge ( primary coil current )
  • total-advance gauge ( in degrees crankshaft )
Qty Req-1, Model-4 Cylinder Models, Item Info 2-Dual Polarity. Top Entry Cap. Requires PC or Laptop wired connection.
Rate and Review this Product
RKC638ELT
In stock
Most orders placed now ship next business day!
£330.00 ex VAT£396.00 inc UK VAT
Quantity
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

  • direction:CW/CCW
  • voltage: 4,0-15,0 Volts
  • range:500 - 8000 rpm
  • temperature:-30 to 100 Celsius
  • coil:stock or High Energy coil, primary coil NOT below 1,0 ohm
  • dwell:constant current, fully autom.
  • time-out:after 1 second current is switched off
  • spark-bal.:better than 0,5 degr. crankshaft
  • vacuum:vacuum advance or boost retard, max. 20 degrees crankshaft
  • max.advance:45 degr. crankshaft
  • curves: one programmable advance curves
  • Programmable: By iOS or Android app via Bluetooth 4.0
  • Rev limiter:Programmable soft rev limiter ( max 7900 rpm ), 60% of the spark will cut off
  • wiring:red = +6V or +12V, black = '-' coil, blue = ground
  • App for IOS:123\Tune version 1.5.2 (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ and up
  • App for Android:123\Tune+ version 1.5.0 (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4
Qty Req-1, Model-4 Cylinder Models, Item Info 2-Dual Polarity. Top Entry Cap. Bluetooth Connectivity.
5 out of 5 starsRead 1 Review(s)Rate and Review this Product
RKC638ELTBT
In stock
Most orders placed now ship next business day!
£375.00 ex VAT£450.00 inc UK VAT
Quantity
Fully programmable unit for early Rover V8 applications pre-SD1 with tooth drive.

123ignition did it again ! If you want to tune your engine, or you have an engine for which there is no standard distributor available.....the new 123\TUNE is the answer ! By connecting it to a computer, the end-user can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE.
( Handy, if you're driving on two different fuels, like regular fuel with LPG or with Ethanol )

Here are all the features offered :

rotation CW and CCW ( autodetect )
for 6 Volt and/or 12 Volt cars ( autodetect )
variable dwell constant current, fully autom. ( autodetect )
coil current protection time-out after 1 second ( autodetect )
spark-balancing: better than 0,5 degr. crankshaft
for positive and negative earthed cars ( 123\TUNE-8 is for neg.earth ONLY )
two centrifugal advance curves ( 500 to 8000 rpm )
two vacuum-advance and boost-retard curves ( 0 to 200 kPa or -30 inHg to +15 psi )
two MAP-start fields
two rev.limiters ( advanced random spark stealing )
real-time tuning under keyboard-control ( ideal for working on a rolling road )
rpm-stopwatch ( ideal for tuning using the road itself as a rolling road )
luxurious import-from-file and export-to-file ( curves can easily be exchanged over the internet )

electronic "dashboard" with:
temperature gauge ( selectable in degrees Celsius or Fahrenheit )
manifold pressure ( selectable in Bar or inches Hg / Psi )
rev. counter ( 0 to 8000 rpm crankshaft )
spark-energy gauge ( primary coil current )
total-advance gauge ( in degrees crankshaft )

available in 4- , 6- and 8- cylinder models with various sizes and shapes.
Qty Req-1, Model-V8, Item Info 2-Dual Polarity. Top Entry Cap. Requires PC or Laptop wired connection.
Rate and Review this Product
RB7458E123
In stock
Most orders placed now ship next business day!
£465.00 ex VAT£558.00 inc UK VAT
Quantity
Fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

The TUNE+ will run on all iOS devices with Bluetooth 4.0 and on Android devices with Bluetooth 4.0 in the future. The Android App is under construction.

Here are all the features offered:
  • rotation CW and CCW (autodetect)
  • for 6 Volt and/or 12 Volt cars (autodetect)
  • variable dwell constant current, fully autom. (autodetect)
  • coil current protection time-out after 1 second (autodetect)
  • for positive and negative earthed cars (123\TUNE-8 is for neg.earth ONLY)
  • programmable centrifugal advance curve (500 to 8000 rpm)
  • programmable vacuum-advance and boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
  • rev.limiters (advanced random spark stealing)
  • real-time tuning (ideal for working on a rolling road)
Electronic "dashboard" with:
  • temperature gauge (selectable in degrees Celsius or Fahrenheit)
  • manifold pressure (selectable in Bar or inches Hg / Psi)
  • rev. counter (0 to 8000 rpm crankshaft)
  • spark-energy gauge (primary coil current)
  • total-advance gauge (in degrees crankshaft)
Qty Req-1, Model-V8, Item Info 2-Dual Polarity. Top Entry Cap. Bluetooth Connectivity.
Rate and Review this Product
RB7458E123BT
In stock
Most orders placed now ship next business day!
£475.00 ex VAT£570.00 inc UK VAT
Quantity
Rate and Review this Product
GDC117P1
Out of stock, expected soon Feb 05, 2025. Add to cart and Back Order
£20.25 ex VAT£24.30 inc UK VAT
Quantity
Rate and Review this Product
STC1857P1
In stock
Most orders placed now ship next business day!
£5.05 ex VAT£6.06 inc UK VAT
Quantity
12 month warranty
Worldwide shipping
Price Match
Customer Comments
"I appreciate the wide selection and competitive pricing. As I'm just starting a total restoration of a 1958 TR3A, I'm sure I will be purchasing a lot more in the future." Customer Comment
Product Description

MGB 123 Ignition Electronic Distributor - Programmable
